Deploying Kubernetes Gateway API with NGINX Gateway Fabric

Leave a Comment / DevOps, Kubernetes / By
Deploying Kubernetes Gateway API

Kubernetes networking is undergoing one of its biggest shifts since Ingress was introduced. The traditional Ingress API is slowly becoming insufficient for modern traffic-management needs, and the community has chosen Gateway API as its future.

Gateway API isn’t just a “new version of Ingress.”
It is a complete redesign of how traffic enters, flows through, and is controlled inside Kubernetes clusters.

In this guide, we will:

  • Understand the real reasons Ingress is being replaced
  • Explore the Gateway API architecture in depth
  • Deploy the full stack with NGINX Gateway Fabric
  • Route real traffic across two services
  • Understand Route policies, extensibility, and production best practices
  • Highlight the differences you must know before migrating in 2026
  • Provide GitHub repo + video tutorial for hands-on experience

This blog covers more than video, including architecture insights, diagrams, production recommendations, and an explanation of internal NGF behaviour.

Watch the Full Video Tutorial

Why Gateway API Exists (Beyond What Most People Know)

When developers hear “Ingress is deprecated,” the natural question is:
“Why replace something that works?”

The answer is deeper than what the documentation usually states.

Here are the real reasons the Kubernetes community decided Ingress had to evolve:

1. Ingress Could Never Support Multiple Traffic Protocols

Ingress only supports HTTP/HTTPS.

But modern applications need more:

  • gRPC
  • TCP
  • UDP
  • TLS passthrough
  • mTLS
  • WebSockets
  • HTTP/3

Vendors hacked these into annotations, which led to massive fragmentation.
Gateway API solves this with separate route types:

HTTPRoute
GRPCRoute
TCPRoute
UDPRoute
TLSRoute

Each designed with first-class support.

2. Ingress Was Controller-Owned, Not Kubernetes-Owned

This might surprise beginners:

Ingress behavior depended entirely on the vendor’s implementation.

This meant:

  • Same YAML, different behavior
  • Impossible portability
  • No shared standard
  • No smooth multi-cloud migration

Gateway API is owned by the Kubernetes SIG-NETWORK group, with vendors collaborating instead of inventing extensions.

3. Ingress Couldn’t Support Multi-Tenancy

Today’s clusters have:

  • Multiple teams
  • Multiple ingresses
  • Shared load balancers
  • Platform teams vs application teams

Ingress forced everyone to touch the same resource.
Gateway API introduces a small but powerful line:

allowedRoutes:
  namespaces:
    from: Same | Selector | All

This finally gives:

  • Team separation
  • Scoped permissions
  • Clean multi-tenant architectures

Each vendor invented its own custom annotation set.
This makes YAML non-portable and hard to maintain.

4. Ingress Was Too Rigid for Modern Traffic Engineering

The Solution: Gateway API

Modern systems need:

  • Canary rollouts
  • Header-based routing
  • A/B testing
  • Path rewrites
  • Traffic splitting
  • Circuit breaking
  • Retries + timeouts
  • Advanced load balancing

With Ingress? Everything was annotations vendor hacks wrapped in YAML.

Gateway API gives rich routing features inside actual structured fields.

Deep Dive: Gateway API Architecture

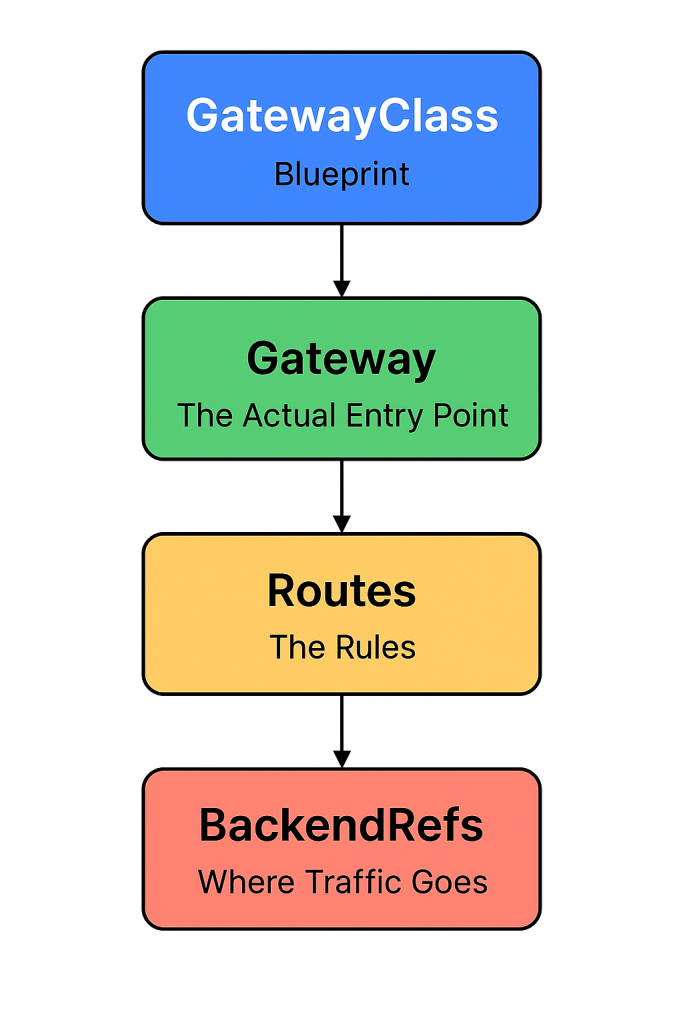

Gateway API is designed as a 4-layer architecture, each with a clear purpose.

1. GatewayClass: What Engine Will Drive This Gateway?

Defines which controller implementation you want:

  • NGINX
  • Traefik
  • Kong
  • Istio
  • HAProxy
  • AWS ALB
  • And more…

Think of it as the controller + data plane provider.

2. Gateway: Where Does External Traffic Enter?

This is the actual load balancer or NodePort that receives traffic.

A Gateway defines:

  • Listener ports
  • Protocols
  • TLS settings
  • Which namespaces can attach Routes

Multiple Gateways can use the same class.
One cluster can have:

  • A public gateway
  • An internal gateway
  • A staging gateway
  • A team-isolated gateway

This was impossible with Ingress.

3. Routes : How Should Traffic Flow?

Routes define rules like:

  • Match /green, /blue
  • Header contains region: asia
  • Method = POST
  • gRPC service name matches
  • Weighted traffic (canary)

Each route type supports its own protocol.

4. Backends: Where Should the Traffic Go?

Usually:

  • Kubernetes Services
  • ServiceImport (multi-cluster)
  • gRPC backends
  • Mesh sidecar endpoints

Gateway API never talks to pods directly, always via Services.

Deploying Gateway API + NGINX Gateway Fabric

Now let’s deploy everything with explanations you won’t find in normal tutorials.

In this lab we will set up:

✔ Gateway API CRDs
✔ NGINX Gateway Fabric (controller + data plane)
✔ Two sample applications (green + blue)
✔ A Gateway
✔ An HTTPRoute for /green and /blue

Step 1: Install Gateway API

Gateway API is not installed by default in Kubernetes, so we need to install the official CRDs (Custom Resource Definitions).

Run this command:

kubectl apply -f https://github.com/kubernetes-sigs/gateway-api/releases/download/v1.3.0/standard-install.yaml

What this command does

This installs new API types into your cluster, such as:

  • GatewayClass → defines which controller will manage Gateways
  • Gateway → the actual entry point
  • HTTPRoute → routing rules
  • GRPCRoute → for gRPC apps
  • BackendTLSPolicy → extra TLS controls
  • ReferenceGrant → allows cross-namespace references

Step 2: Install NGINX Gateway Fabric Using Helm

Gateway API needs a controller something that reads Gateways and Routes and configures the data plane.

In this demo, we will use NGINX Gateway Fabric, one of the most stable Gateway API implementations.

Create a values.yaml file

This file tells NGF how to expose itself.

nginxGateway:
  name: nginx-gateway
nginx:
  service:
    type: NodePort

What these lines mean

  • nginxGateway.name — this is just a name for the controller.
  • service.type: NodePort — NGF will be reachable through a NodePort on your nodes.

By default Nginx gateway Fabric uses Loadbalancer as a service type.

Install NGF using Helm

helm install ngf oci://ghcr.io/nginx/charts/nginx-gateway-fabric \
--create-namespace -n nginx-gateway -f values.yaml

After installation, check the resources:

kubectl get all -n nginx-gateway
kubectl get gatewayclass

You should see a GatewayClass named nginx. This is important because our Gateway will use this class.

Step 3: Deploy the Green & Blue Sample Applications

To test routing, we’ll deploy two simple apps: one green, one blue.

Each app has:

  • A Deployment
  • A Service
---
apiVersion: v1
kind: Service
metadata:
  name: green-svc
spec:
  selector:
    app: green-app
  ports:
  - port: 80
    targetPort: 8080

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: green-deployment
spec:
  selector:
    matchLabels:
      app: green-app
  replicas: 2
  template:
    metadata:
      labels:
        app: green-app
    spec:
      containers:
      - name: app
        image: gcr.io/google-samples/hello-app:1.0
        ports:
        - containerPort: 8080
        env:
        - name: GREETING
          value: "Hello from the Green App!"
---

apiVersion: v1
kind: Service
metadata:
  name: blue-svc
spec:
  selector:
    app: blue-app
  ports:
  - port: 80
    targetPort: 8080
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: blue-deployment
spec:
  selector:
    matchLabels:
      app: blue-app
  replicas: 2
  template:
    metadata:
      labels:
        app: blue-app
    spec:
      containers:
      - name: app
        image: gcr.io/google-samples/hello-app:1.0
        ports:
        - containerPort: 8080
        env:
        - name: GREETING
          value: "Hello from the Blue App!"

Now, run the commands to deploy the applications.

kubectl apply -f apps.yaml
kubectl get pods,svc

You should see:

  • green-svc
  • blue-svc

Step 4: Create the Gateway (Entry Point)

apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: colors-gateway
spec:
  gatewayClassName: nginx
  listeners:
    - name: http
      protocol: HTTP
      port: 80
      allowedRoutes:
        namespaces:
          from: Same
  • When NGF sees a Gateway with gatewayClassName: nginx,
    it automatically updates the Gateway status with the address of the NGINX Service.
  • If your NGINX service is:
    • LoadBalancer → your Gateway gets LB IP
    • NodePort → your Gateway gets node IP
    • No service → NGF assigns pod IPs

This dynamic linking is unique to NGF and extremely useful for automation.

kubectl apply -f gateway.yaml
kubectl get gateway

You will see gateway information along with gateway IP.

Step 5: Create HTTPRoute for /green and /blue

apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: colors-route
spec:
  parentRefs:
    - name: colors-gateway
  rules:
    - matches:
        - path:
            type: PathPrefix
            value: /green
      backendRefs:
        - name: green-svc
          port: 80

    - matches:
        - path:
            type: PathPrefix
            value: /blue
      backendRefs:
        - name: blue-svc
          port: 80

What happens internally:

  • Route attaches to Gateway
  • NGF validates the route
  • NGF generates NGINX config snippet
  • Data plane updates without reload (hot reload → zero downtime)

This is a major improvement over classic Ingress.

kubectl apply -f colors-route.yaml
kubectl get httproute

You will will see the httproute created with both the rules .

Step 6: Test the Routing

kubectl get gateway
curl http://<IP>/green
curl http://<IP>/blue

Traffic flows as expected.

Gateway API Policies: The Real Power

This is where Gateway API truly outshines Ingress.

Policies allow you to configure:

Without touching:

❌ Applications
❌ Services
❌ Deployments

But instead controlling at the Gateway/Route level.

Examples:

BackendTrafficPolicy

  • Timeouts
  • Retries
  • Circuit breaking
  • Load-balancing algorithm
  • Max connections

BackendTLSPolicy

  • mTLS
  • TLS verification mode

HTTPRoute Filters

  • Header add/remove/modify
  • URL rewrite
  • Redirect
  • Traffic mirror
  • Traffic split

Example: Canary Deployment

backendRefs:
  - name: app-v1
    port: 80
    weight: 90
  - name: app-v2
    port: 80
    weight: 10

No need for custom annotations, no vendor hacks.

Production Best Practices for Gateway API

Here are insights used in real production clusters:

✔ Use a dedicated Gateway per environment (dev/stage/prod)

✔ Separate public and internal Gateways

✔ Avoid wildcard “allowedRoutes: All” in large orgs

Use namespace selectors instead.

✔ Avoid path-based routing for microservices with overlapping prefixes

Use hostname-based routing instead.

✔ Enable mutual TLS between Gateway and backend services for sensitive workloads.

✔ Monitor Gateway API objects through:

  • NGF metrics
  • gateway_api_* Prometheus metrics
  • NGINX data plane metrics

✔ Use Gateway API for:

  • API Gateways
  • North-south traffic
  • Ingress replacement
  • Multi-tenant clusters
  • East-west service-to-service mesh (use Linkerd/Istio)
  • Pure TCP/UDP load balancing without discovery

✔ Avoid Gateway API for:

  • East-west service-to-service mesh (use Linkerd/Istio)
  • Pure TCP/UDP load balancing without discovery

GitHub Repository: kubernetes-basics-to-advanced

Final Thoughts

Gateway API isn’t just the future, it is already production-ready.

With NGINX Gateway Fabric, you get:

  • Dynamic configuration updates
  • Zero reload routing
  • High performance
  • Full HTTPRoute feature support
  • Clean multi-team separation
  • A scalable and modern API

However, if you start now, your 2026 migration will be smooth and well-architected.
